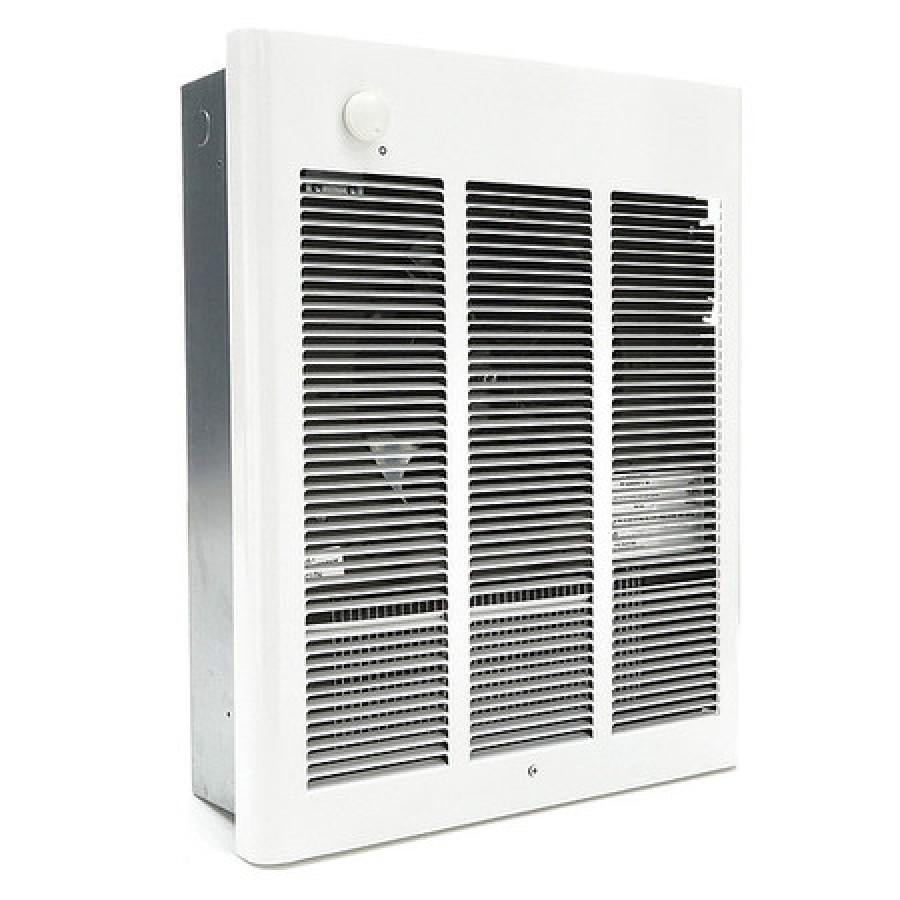

DAYTON 3UG56 Recessed Electric Wall-Mount Heater, Recessed or Surface, 208/240V AC

Recessed Electric Wall-Mount Heater, Light Commercial/Residential, 3000/1500, 4000/2000 Watts, 10,236/5,118, 13,650/6,824 BtuH, Heater Volta208/240 V AC, Electric Heater Phase 1, Wall Opening Width 14-5/8 In., Color White, 14.5/7.2, 16.7/8.3 Amps AC, Wall Opening Depth 3-7-8 In., Wall Opening Height 18-1/4 In., Mounting Type Surface and Recessed, 60 Hz, Air Temp. Rise 108 Degrees F, Grille Material Steel, Grille Width 15 3/4 in, Grille Depth 1 1/2 in, Grille Height 19 1/4 in

Features

• Electric Heater Item: Electric Wall Heater
• Electric Heater Type: Light Commercial/Residential
• Watts: 3000/1500, 4000/2000
• BtuH: 10,236/5,118, 13,650/6,824
• Heater Voltage: 208/240VAC
• Electric Heater Phase: 1
• Wall Opening Width: 14-5/8″
• Color: White
• Amps AC: 14.5/7.2, 16.7/8.3
• Wall Opening Depth: 3-7-8″
• Grille Depth: 1 1/2 in
• Manufacturers Warranty Length: 1 yr
• Grille Height: 19 1/4 in
• Standards: ETL Listed, cETL Listed
• Item: Recessed Electric Wall-Mount Heater
• Grille Material: Steel
• Housing Height: 18 1/4 in
• Mounting Type: Recessed or Surface
• Wall Opening Height: 18-1/4″
• Grille Width: 15 3/4 in
• Housing Width: 14 5/16 in
• Housing Depth: 3 3/4 in
• Features: Fan Time Delay, Double Pole Thermostat
• Air Temp. Rise: 108 Degrees F
• Hz: 60
• Finish: Baked Enamel
• Voltage: 208/240V AC
• Air Flow: 100 cfm
• Phase: 1
• Includes: -in Thermal Cutout, Fan Delay Switch
• Occupancy Sensor: No
• Building Management System Compatible: No
• Setback Control: No
• Automatic Fan Delay (On/Off): Yes
• Heater Mounting Position: Horizontal Burn
• Remote Control Functions: No Remote Control Included
• WattaOutput: 1,500W/3,000W, 2,000W/4,000W
• Thermostat Included: Unit-Mounted
• Minimum Mounting Distance from Ceiling: 36 in
• Housing Material: Steel
• Frequency: 60 Hz
• Voltage, Phase: 208/240V AC, 1-phase
• Disconnect Switch: No
• Thermostat Contact Type: Double Pole
• Heating Method: Fan Forced
• Minimum Mounting Height from Floor: 8 in
• Smart Connectivity: No Connectivity
• Filter Included: No
• Grille Finish: Enamel
• Programming Capability: Not Programmable
• Grille Color: White
• Control Type: Mechanical Selector Dial
• Heating Capacity: 5,118/10,236 BtuH, 6,824/13,650 BtuH
• Tamper Resistant: No
• Rough-In Width: 14 5/8 in
• Fan Only Operation: No
• Amperage: 7.2A/14.5A, 8.3A/16.7A
• Rough-In Depth: 3 7/8 in
• Thermal Overheat Protection: Manual Reset
• Rough-In Dimensions – H x W x D: 18-1/4 in x 14-5/8 in x 3-7/8 in
• Hold Function: No
• WattaField Convertible: Yes
• Rough-In Height: 18 1/4 in
